Workboat 93

ECTMarine workboats are heavy duty workboats for different applications in the marine industry. The general design is a multicat type vessel, that can work in shallow waters as well as coastal area’s. The vessels are available in different sizes and with a variety of options and in different configurations such as dredge support vessel, supply vessel, carrier, pusher/ tug.  The workboats have a spacious deck and are maneuverable to perform activities in confined area’s.

Information Leaflet WB 93

Propulsion

Propulsion engine                 Volvo Penta

Power                                       105 kW Stage 5

Propellers                                1x 4 blade fixed pitch propellers

Steering system                      hydraulic plate rudder



Deck equipment

Anchor handeling winch

Pull first layer                          20 kN

Towing bitt

Wooden work deck

Ship systems:

Compass, VHF, Fire extinguisher

Navigation and interior lights

Electric bilge pump

Internal cooling system

Hydraulic system powered by main engine

Grease pump and tool kit

Tank capacities

Fuel oil                                         3 m3

Main characteristics

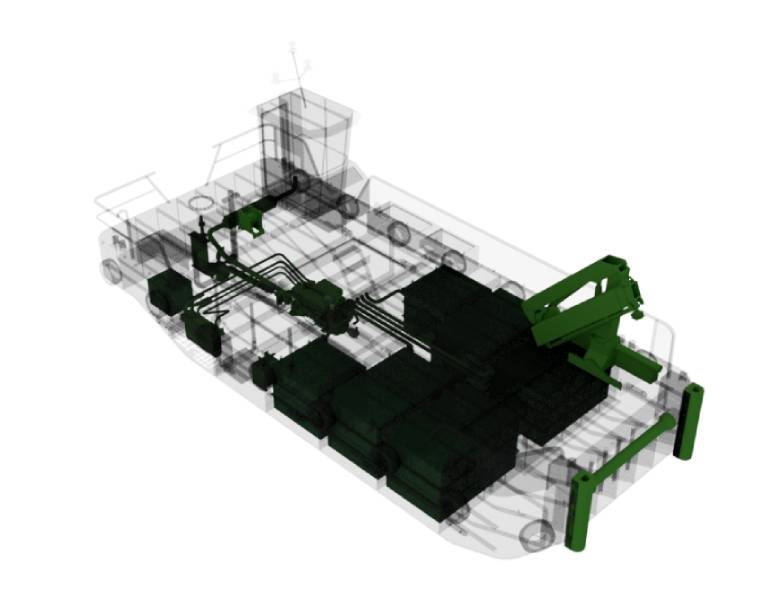

The hull is a fully welded, longitudinally stiffened

The main marine engine with reduction gearbox is located in

the engine room.

Propulsion of the workboat will be realized by a fixed pitch propeller.

Steering is with plate rudder and powered by hydraulic steering gear.

The wheelhouse is constructed of steel and has acoustic and thermal insulation.

Main Dimensions

Length overall                         9 m

Beam                                         3 m

Depth at side                            1,2 m

Draught                                     0,7 m



Electric installation

Alternator                                24V DC

Quantity                                   1x

Capacity                                   1x 60A

Batteries

Quantity                                   2x

Capacity                                    200 Ah

Performance

Bollard pull                              1 ton

Speed (approx)                        7 knots

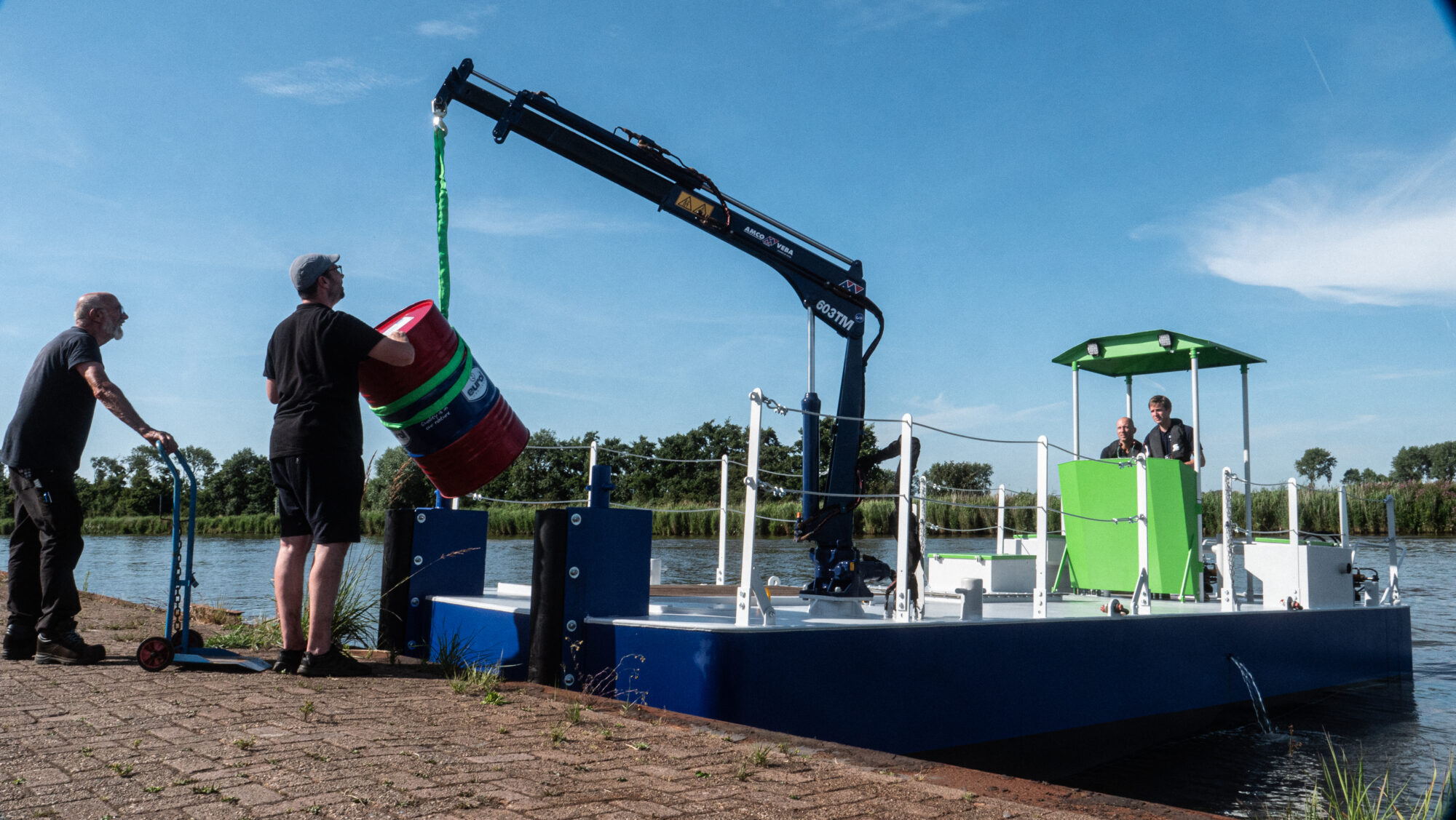

Deck crane (SWL)                   5 tm

Classification

Holland Register
Inland Water Vessel Directive
2006-87 EU zone 2

Optional Equipment

Diesel generator 230V with main switch board

Anchor mooring winch

Radar system

GPS
