he best known leveling tool is the plough. The plough can be used independently, or in combination with other dredging equipment, for example a trailing suction hopper dredger.
The plough can be usefully deployed in places where regular equipment cannot dredge due to limited depth or poor accessibility, such as near banks or around jetties. It is a well-suited tool for levelling the seabed and moving clay, silt, sand, or gravel to deeper water.

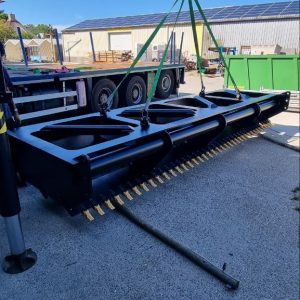

The plough is pulled by a workboat or tugboat. It is connected with wires and lowered to the seabed by a winch attached to an A-frame mounted on the stern of the vessel. The wires can be attached to the plough at different heights, depending on the required dredging depth.

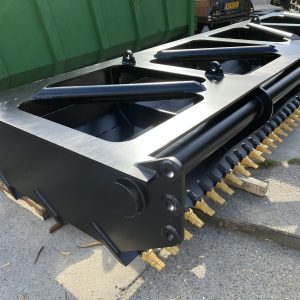

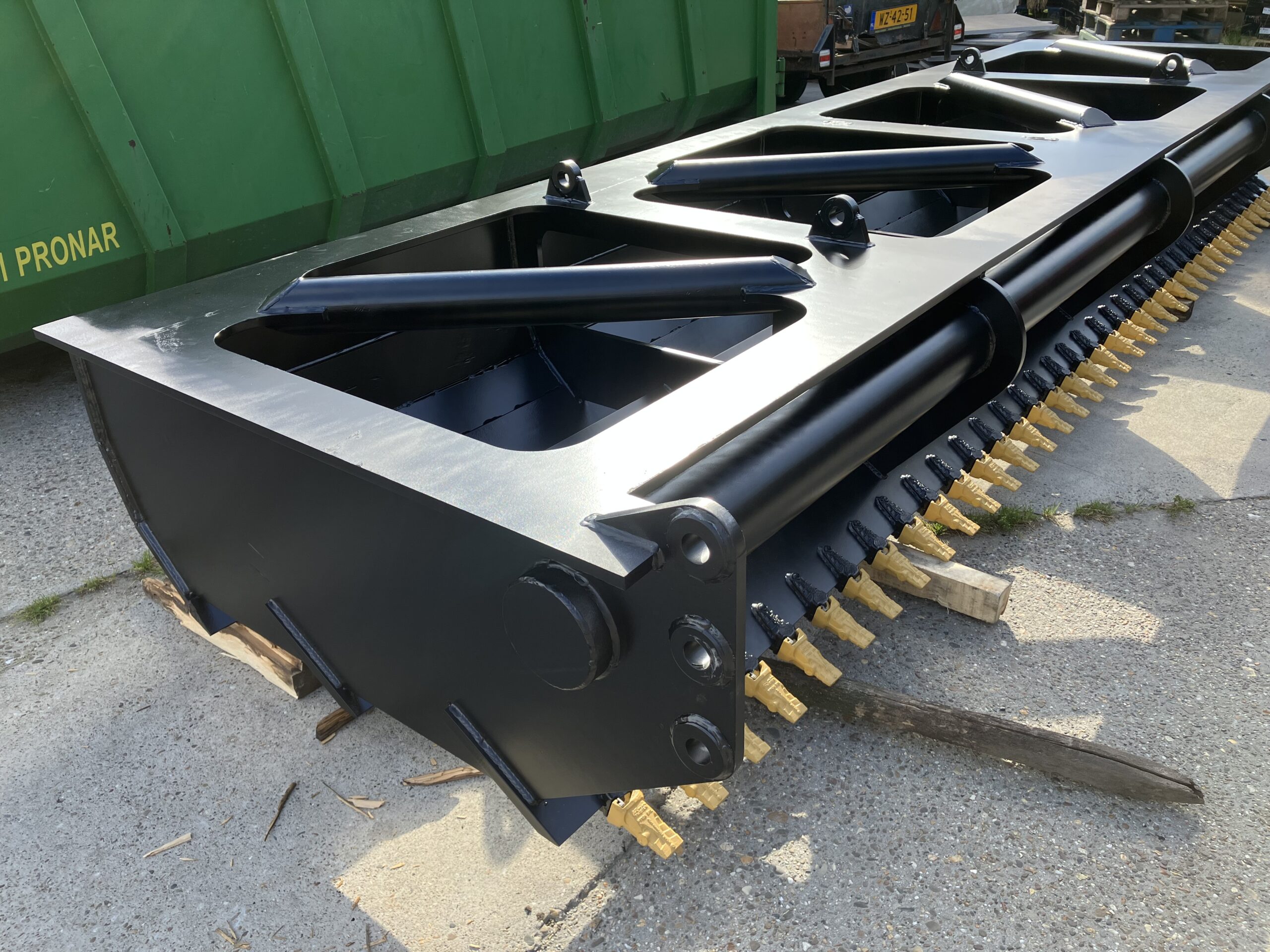

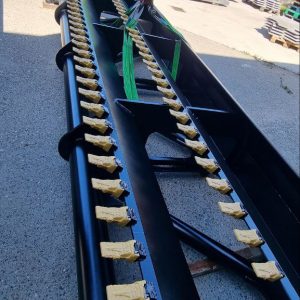

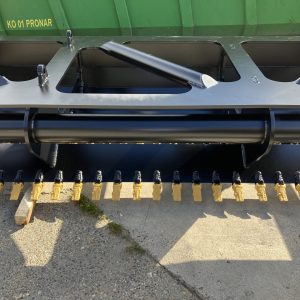

Our plough consists of a heavy steel frame with two rows of cutting edges or teeth designed to penetrate the sediment. The last row consists of a Hardox plate. The replaceable tooth system is integrated into the plough design. These teeth are characterized by a long wear life, excellent digging performance, and easy replacement. A wide range of point shapes is available depending on the soil conditions.

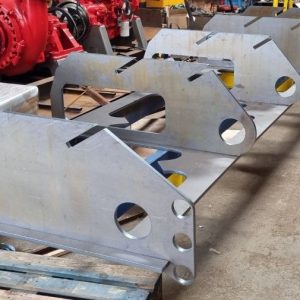

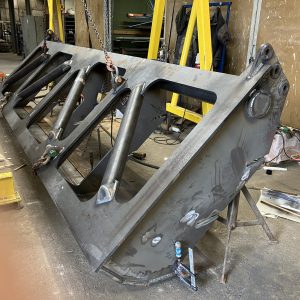

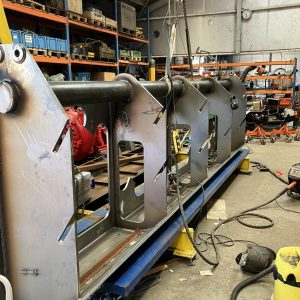

ECTMarine specializes in the design and fabrication of ploughs. Each plough is custom-designed and manufactured according to the client’s specific requirements. In addition, the A-frame used to lower and hoist the plough can be included as part of the delivery.
