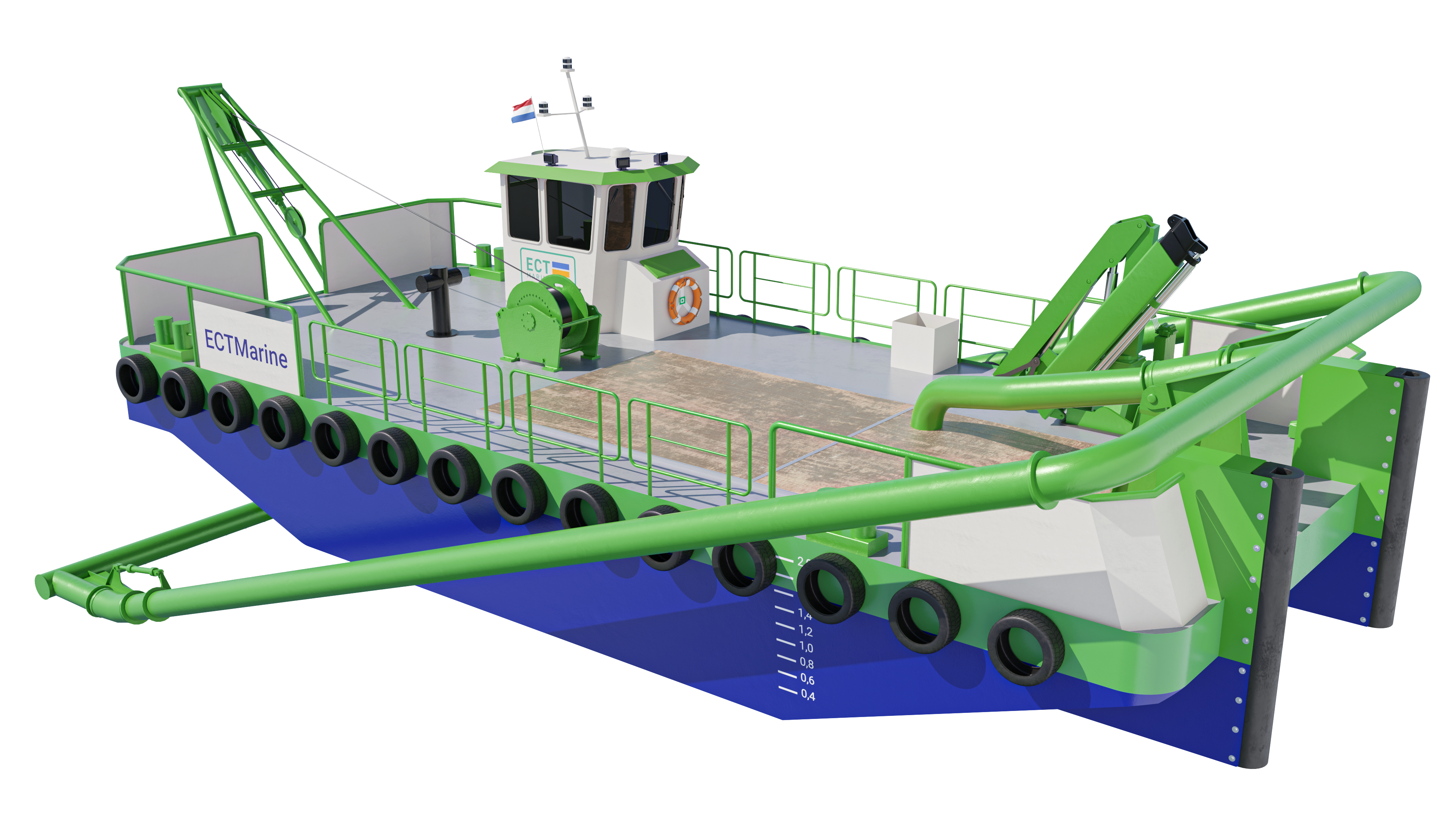

Workboat 156

ECTMarine workboats are heavy duty workboats for different applications in the marine industry. The general design is a multicat type vessel, that can work in shallow waters as well as coastal area’s. The vessels are available in different sizes and with a variety of options and in different configurations such as dredge support vessel, supply vessel, carrier, pusher/ tug.  The workboats have a spacious deck and are maneuverable to perform activities in confined area’s.

Information Leaflet WB 156

Propulsion

Propulsion engine                                              Doosan, Volvo, Caterpillar

Power (approx)                                                   2X 220kW

Propellers                                                             2x 4 blade fixed pitch propellers

Steering system                                                   Hydraulic plate rudders

Deck equipment

Anchor handeling winch

Line pull first layer                                             120 kN

Towing bitt

Bow roller

Wooden work deck

Ship systems:

Compass, VHF, Fire extinguishers

Navigation and interior lights

Electric bilge pump

Mechanical ventilation

Internal cooling system

Hydraulic system powered by main engine

Grease pump and toolkit

Tank capacities

Fuel oil 9 m3

Main characteristics

The hull is a fully welded, longitudinally stiffened

The main marine engines with reduction gearbox is located in

the engine room.

Propulsion of the workboat will be realized by a fixed pitch propeller.

Steering is with plate rudder and powered by hydraulic steering gear.

The wheelhouse is constructed of steel and has acoustic and thermal insulation.

Main Dimensions

Length overall                                                     15 m

Beam                                                                     6 m

Height                                                                   2 m

Draught                                                                 1,2 m

Electric installation

Alternator                                                              24V DC

Quantity                                                                 2X

Capacity                                                                 2X 60A

Batteries

Quantity                                                                 3X

Capacity                                                                 300 Ah

Performance

Bollard pull ahead                                                5 ton

Speed (approx)                                                      7 knots

Deck crane (SWL)                                                20 tm

Classification (optional)

Bureau Veritas / Holland Register
Class I X HULL · MACH special service / Workboat Coastal Area

Optional Equipment

Diesel generator 230V with main switch board

Anchor mooring winch

Radar system
